Sunflower oil extraction plant

Our company is professional in sunflower oil extraction plant design, installation, trial run, technical trainning and so on. We can provide you turnkey project of the whole sunflower oil extraction plant from10 to 6000TPD  .
Sunflower oil has high nutritive value, containing about 90% unsaturated fatty acids,and the essential fatty acidlinoleic acid accounts for about 66%. In order to improve oil yield rate and get high quality sunflower oil, the sunflower oil extraction plant should consist of following processes: pretreatment, prepressing, extracting and refining.

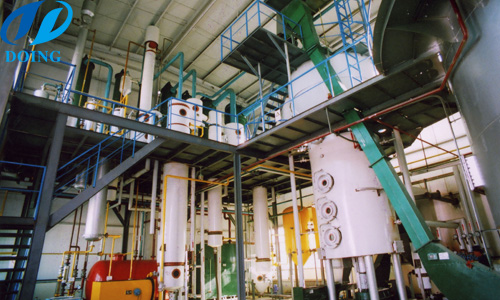

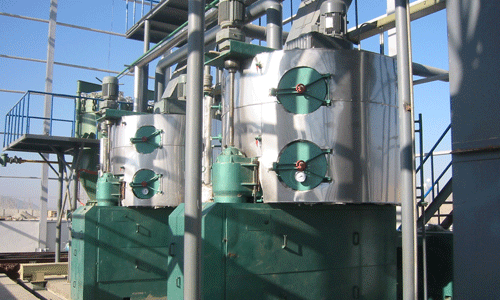

Pretreatment section of sunflower oil extraction plant

Pretreatment section of the sunflower oil extraction plant
Pretreatment section removes impurities and adjusts temperature and moisture of oil seeds to suit further process.

Sunflower seeds
       ↓
Magnitic seperatingMetal impurities
       ↓
CleaningOther impurities
       ↓
HuskingSunflower seed hull

Flaking

       ↓
Cooking
       ↓
PrepressingCrude sunflower oil
   ↓
Sunflower seed cakeExtraction Workshop

sunflower oil plant

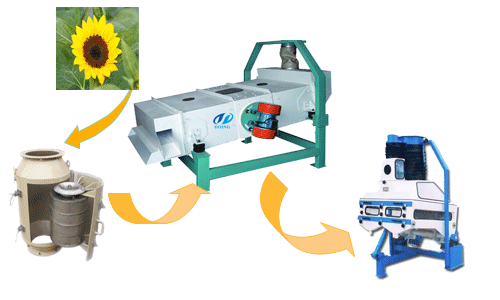

a> Cleaning :
Same with other oil seeds cleaning, sunflower oil pretreatment workshop should be equipped with magnetic separator, cleaning seives, etc.

sunflower oil plant

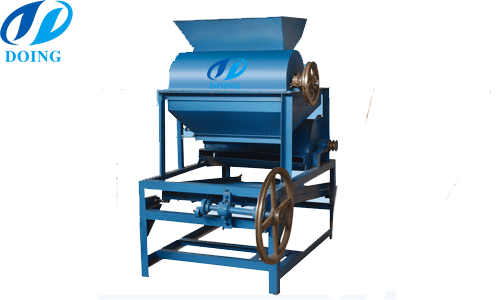

b> Husking:
Sunflower seed have hard shells like peanut and palm kernel. Husking separates shells from sunflower seeds, which impoves oil yeild and oil quality.

sunflower oil plant

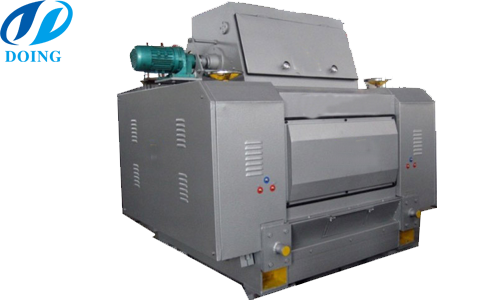

c> Flaking :
Flaking destroy oil cells and increase oil surface, also shorten oil outflowing distance, which is benefitficial to extract oil and impove oil quality.

sunflower oil plant

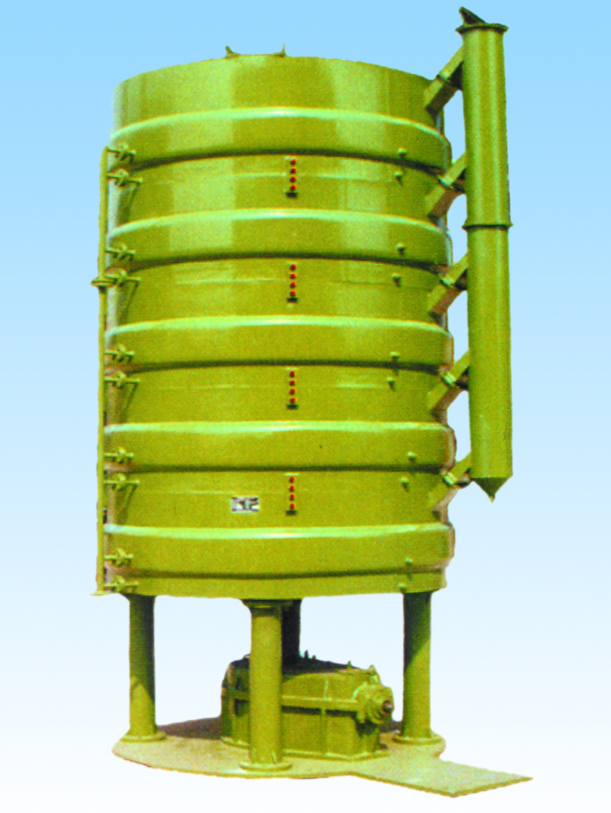

d> Cooking:
Cooking utilizes heat (steam or boiler) to degenerate protein facilite oil release.



sunflower oil plant












e> Prepressing :
Sunflower seeds contain about 50% oil. Prepressing is needed to reduce oil content of sunflower seed cake to suit solvent extraction.








Extraction plant of the sunflower oil extraction plant
 Extraction plant utilize solvent to extract sunflower oil from sunflower seed. Oil residue of extraction plant is less than 1% .

 Fresh Solvent
         ↓
CakeExtractionWet MealDesolventisingMeal
         ↓
      Miscella                                            ↓
         ↓
 Evaporating and strippingSolvent mixtureCondension and Recovery
         ↓                                                      ↓
     Crude sunflower Oil          Solvent Recycling
         ↓
  Refining Workshop


1>Extracting:To extract the oil in the cake by solvent, the general solvent is 6# extraction solvent oil or commercial hexane.
2>Desolventising: To remove and recover the solvent in the meal; Dry and cool down the meal at the same time.
3>Evaporating and stripping: Heating the the miscella by indirect steam, so that can vaporize the solvent and concentrate the miscella.
4>Solvent recycling: This process is to recover the solvent, decrease solvent comsuption, keep safety prodution and improve product quality.
sunflower seed oil plant sunflower oil extraction plant

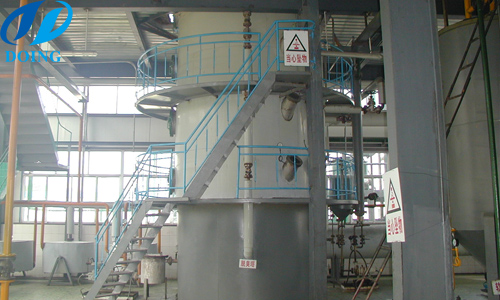

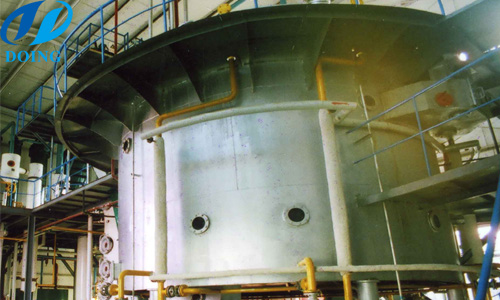

Solvent extraction workshop


Refining section of the sunflower oil extraction plant
Refining section is to remove the impurities in the crude oil and improve oil quality.

       Crude Sunflower Oil
               ↓
Hot waterDegummingOil Foot
               ↓
Alkali liquorDeacidfyingSoap Stock
               ↓
Activeted ClayDecoloringWaste Clay
               ↓
       Deodorizing
               ↓
       Dewaxing Wax
               ↓
       Refined Oil

1>Degumming:To remove the gum impurities, and prepare for the subsequent refining processes.
2>Deacidfying:To remove the free fatty acid in the crude oil.
3>Decoloring: To remove the pigment in the crude oil by adding active clay, so that can improve the oil quality.
4>Deodorizing:To remove the odor in the oil, so that can improve the flavor, stability, color and quality of the oil.
5>Dewaxing: To renmove the wax in the oil and improve the quality of the oil.
sunflower seed oil plant sunflower oil plant

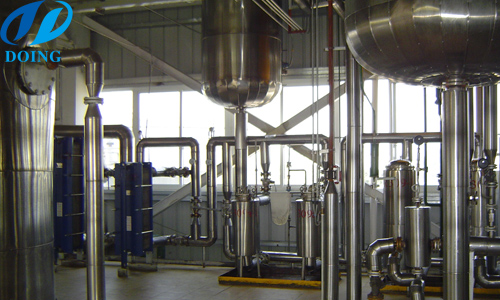

Sunflower oil refinery workshop
In general, sunflower oil refinery plant devides to 3 types, batch, semi-continuous, continuous sunflower oil refinery plant, the difference of which is capacity.
Our engineers can help you design and install sunflower oil extraction plant according to your capacity and requirements. If you want to know more about sunflower oil extraction plant, please feel free to contact us.
