Extractor, center of extraction process

Oil Mill Plant Oil Extraction Process

Extractor is the center of extraction process, in which solvent extracts oil from pretreated material. There're 2 types extractors usually used in solvent extraction process, rotocel extractor and loop type extractor.

Chat Online Leave A Message

General oil seeds

  • soybean oilseed
  •  peanut oilseed
  • sunflower oilseed
  •  corn germ
  • sesame oil seed
  • canola oil seed
  • rice bran oil material
  • palm oil
Features of extractors we offer:
rotocel extractor1. Stable performance
2. Low oil residue : <1%.
3. Easy to operate and maintain
4. High efficiency and energy saving


Extractor is the center of extraction process, in which solvent extracts oil from pretreated material. There're 2 types extractors usually used in solvent extraction process, rotocel extractor and loop type extractor.

Rotocel extractor

1. Rotocel extractor transmits with racks; specialized balanced design of rotors runs placidly at low speed, and consumes low power.
2. Loading system automatically adjusts wind closing device and revolving speed of main enfine according to loading amount, creats negative pressure in extractor, and reduces solvent leak.
3. Oil mixture circulation decreases fresh solvent consumption, reduces oil residue in the meal, impoves concentration of oil mixture, and also saves energy by reducing evaporation.
4. High bed depth creats immersion extraction and reduces meal content in oil mixture, which impoves crude oil quality and reduces evaporation amount.
5. Rotocel suits all prepressed caked solvent extraction.

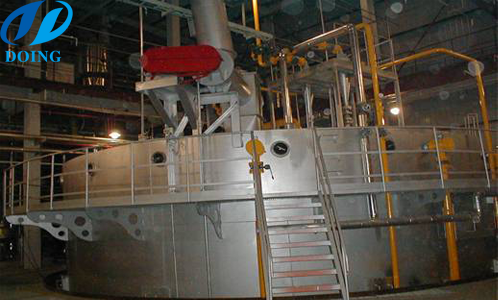

rotocel extractor
Rotocel extractor
Loop type extractor

1. Loop type extractor transmits with chains with low rotating speed and low power consumption. Lattest structure design runs placidly without moise.
2. Loading system automatically adjusts wind closing device and revolving speed of main enfine according to loading amount, creats negative pressure in extractor, and reduces solvent leak.
3. Oil mixture circulation decreases fresh solvent consumption, reduces oil residue in the meal, impoves concentration of oil mixture, and also saves energy by reducing evaporation.
4. Low bed depth creats percolation extraction. Material flips in curving part, reducing dead angles.

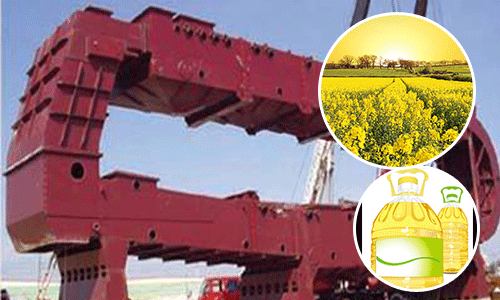

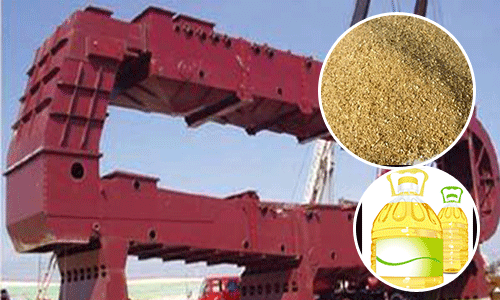

Loop type extractor
Loop type extractor
In general, solvent extraction can be widely used to all oil seeds. However, considering consumption and earnings, solvent extraction is always used in oil processing plant such as soybean oil, rice bran oil, etc.
However, different oil seeds need different extraction process to derive oil. Our engineers can help you design and installate most suitbale line according to your material, capacity, requirements , etc. If you want to know more about oil processing plant, please feel free to contact us.

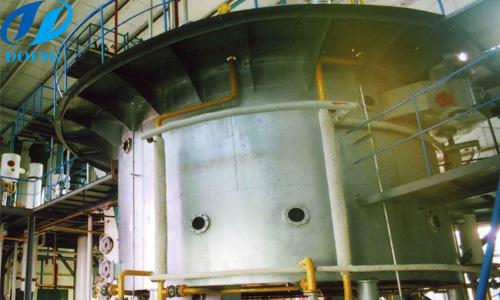

solvent extraction workshop
Solvent extraction workshop
