Palm oil refinery popular in Indonisia

Batch Type Edible Oil Refinery

Palm oil refinery is based on the different usage and requirements, utilizing the physical methods and chemical processes to get rid of the harmful impurities and needless substance in the crude palm oil, getting standard oil.

Chat Online Leave A Message

General oil seeds

  • soybean oilseed
  •  peanut oilseed
  • sunflower oilseed
  •  corn germ
  • sesame oil seed
  • canola oil seed
  • rice bran oil material
  • palm oil
palm oil refinery plant
Palm oil refinery machine

Over the past 30 years, the worldwide area planted to oil palm has increased by more than 150 percent. The palm oil contains rich vitamin A in the original (500-700 parts per million (PPM) and vitamin E (500-800 parts per million (PPM). Now in the market more and more customers have received the palm oil and it develops in a rapid speed. So Palm Oil Refinery is one question most oil processing manufactures to resolve.


palm oil refining plant
Plam oil refining plant

Palm oil process
Palm kernels are pre-treated by magnetic separators that removed metallic debris that might destroy your palm kernel oil press equipment. Then the kernels are sieved to remove sands, stones and other Impurities before cracking with inbuilt swinging hammers. The nuts are separated from the shells after cracking and prepared by heating before extracted with expeller press. The nuts are screwed through a metallic path (with pores) that decreases in diameter to the exit so that the oil is forced out of the side while the cake is collected at the tip of the screw.
Finally, palm kernel oil (PKO) obtained via mechanical means are usually filled with impurities that must be removed by further processing.
Palm oil refinery is based on the different usage and requirements, utilizing the physical methods and chemical processes to get rid of the harmful impurities and needless substance in the crude oil, getting standard oil.


 palm oil refining machine

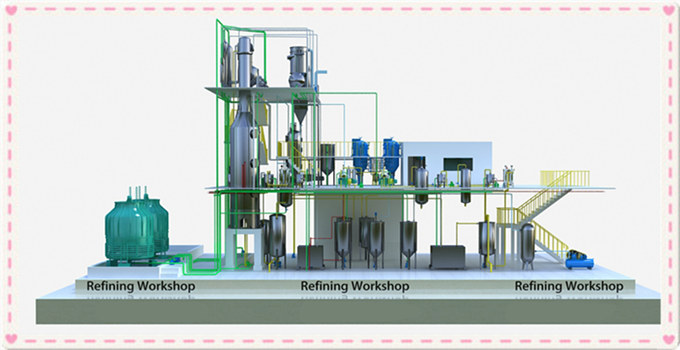

30TPD Palm oil refinery machine

Equipment of Palm Oil Refinery Process:

palm oil refining line

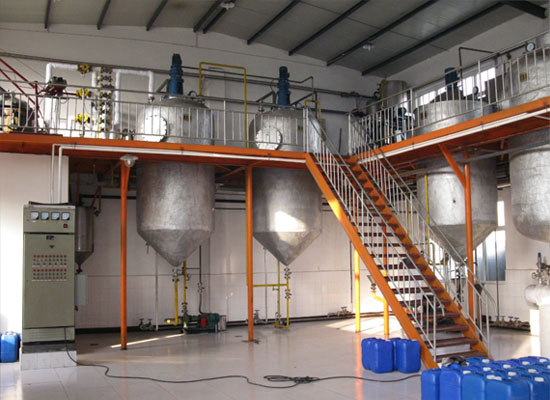

5TPD Palm oil refinery workshop


Degumming section:
Degumming is the first and basic step in the crude palm oil refinery plant, degumming process aims to removing the gum impurities in the crude oil to make it suitable for further refinery process, hydration degumming and special acid degumming are the two main methods.

Deacidification section:
The deacidification system uses versatile neutralization technology, which is developed to deal with oilseeds of different species and qualities in the palm oil refinery plant, it can realize both degumming and neutralization processes by adding alkali, water and acid, then with FFA, crude phospholipids and moisture all removed, the oil and by products (soap foot, phospholipids) are separated.

Bleaching section:
The oil bleaching is also named decolorization in palm oil refinery processes. This process’s main purpose is to remove the product of oxidation, pigments, phospholipids, soap materials from the oil. In the palm oil refinery plant, this process can improve the oil color as well as supplies high quality oil for the deodorization process.

Deodorization section:
Deodorization section is very crucial in palm oil refinery plant in first grade oil production as it improves the flavor of the oil; the quality of deodorization equipment has great effect to the oil quality.


Our company also can offer palm oil refinery plant, palm kernel oil machine, palm oil refining machine and fractionation machine.Please feel free to contact us if you are interested in our machines.
